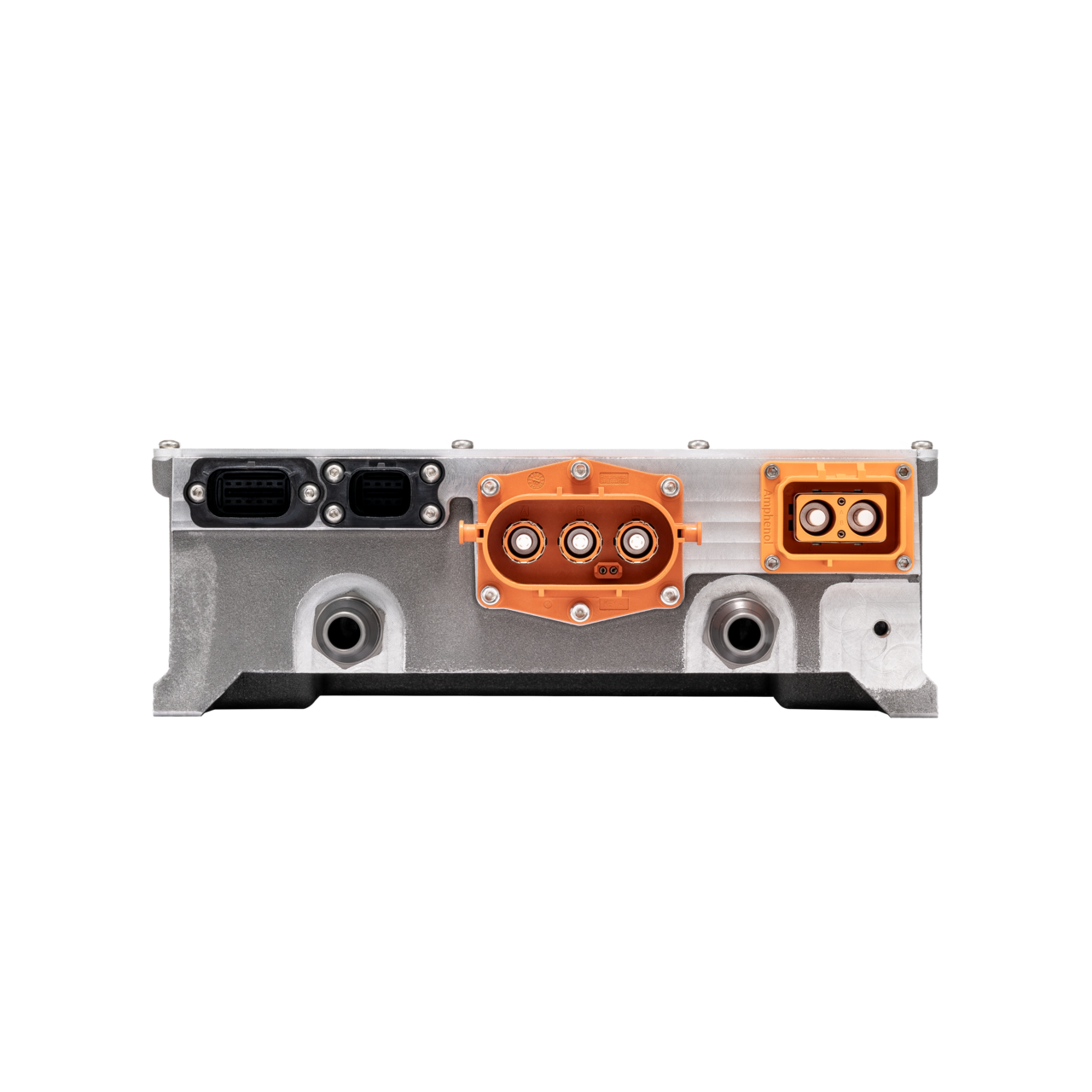

Discover the future of electric mobility with EMDI H10B inverter
The H10B is ideal for a wide range of applications, whether you’re developing diesel-electric, hybrid, or fully electric powertrains. This versatile inverter enhances integration, productivity, performance, efficiency, emissions reduction, and safety, making it a perfect choice for modern electrified vehicles.
Customer Benefits
Compact Design: High continuous current capability in a compact form.
Functional Safety (FuSa): Compliance with ISO 13849, ISO 25119, ISO 19014, and EN 1175 standards ensures utmost safety for electrified vehicles.
Efficiency Improvements: Advanced technology and optimized control algorithms enhance vehicle autonomy, allowing for smaller batteries without sacrificing performance.
Flexible Communication Interfaces: Full support for CAN Open and J1939 protocols ensures seamless integration.
Configurable Parameters: Customizable inverters to meet specific application needs.
Comprehensive Ecosystem: User-friendly software and tools simplify setup and management, enhancing the product lifecycle.
| EMDI H10B | 400-SD | 800-SD |
|---|---|---|
| Output continuous current (Arms) | 100 | 50 |
| Output maximum peak current (Arms) | 150 (1 min) | 75 (1 min) |
| Input DC link voltage operating range (VDC) | 12 – 420 | 12 – 800 |
| Switching frequency (kHz) | 4 – 16 kHz (adjustable) | |
| Dimensions (WxLxH) (mm) | 271 x 182 x 93,6 | |
| Weight (kg) | 4,5 – 5 | |
| Cooling | Liquid cooled or air cooled | |
